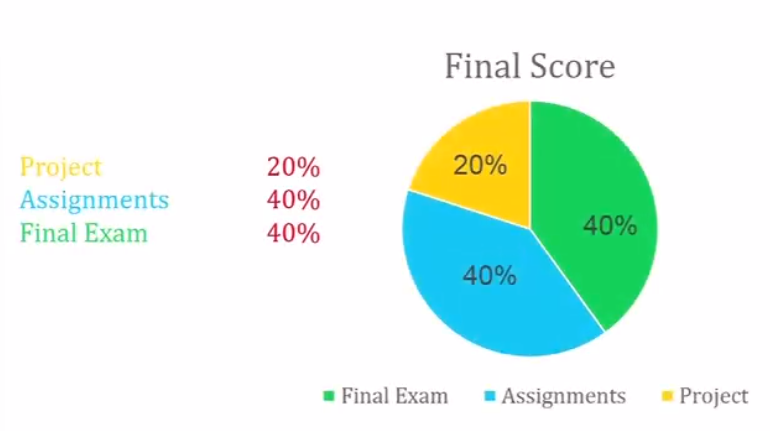

成绩构成

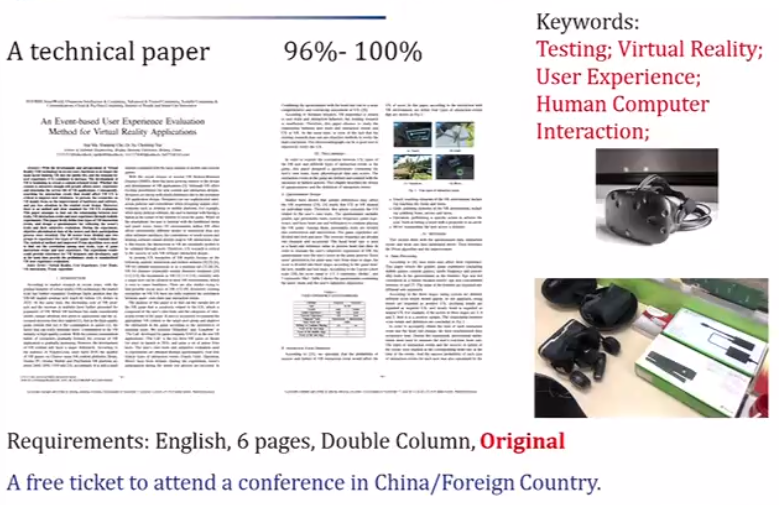

• 项目 20%
• 作业 40%
• 期末 40%

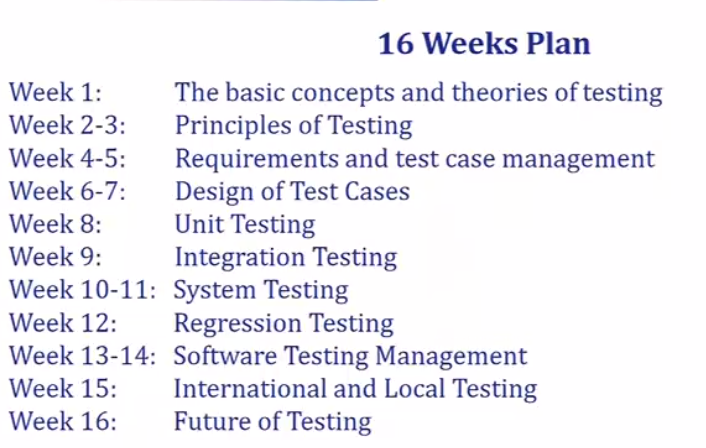

课程大纲

第4-5周，6-7,重要，8非常重要

参考文献

软件测试Ron Patton, Software Testing(2th Edition)

1. The basic concepts and theories of testing

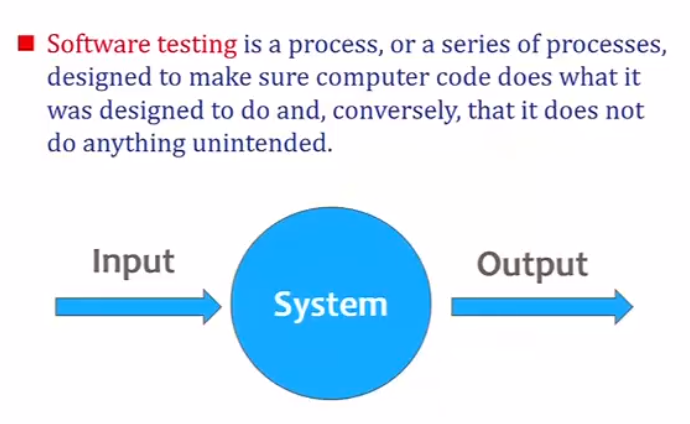

Software testing

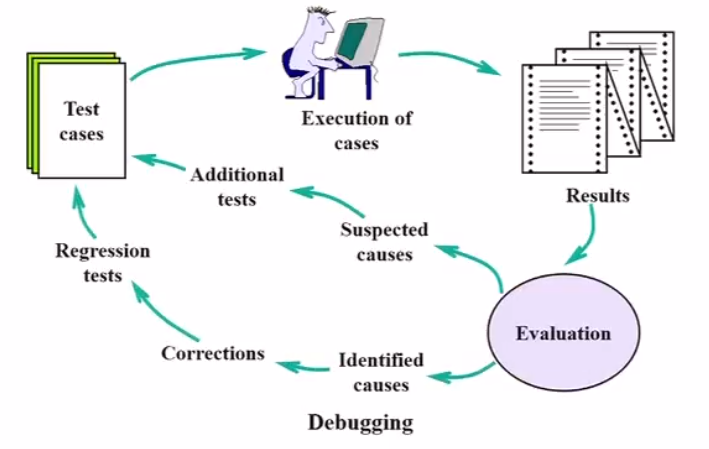

Test Cycle

测试用例不断更新

测试分三个维度

grey box between black and white box

unit - white box system - black box

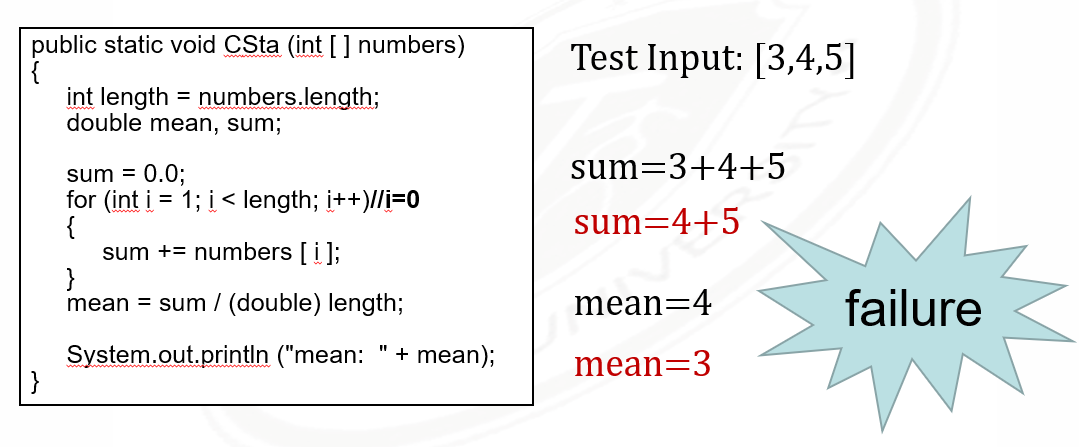

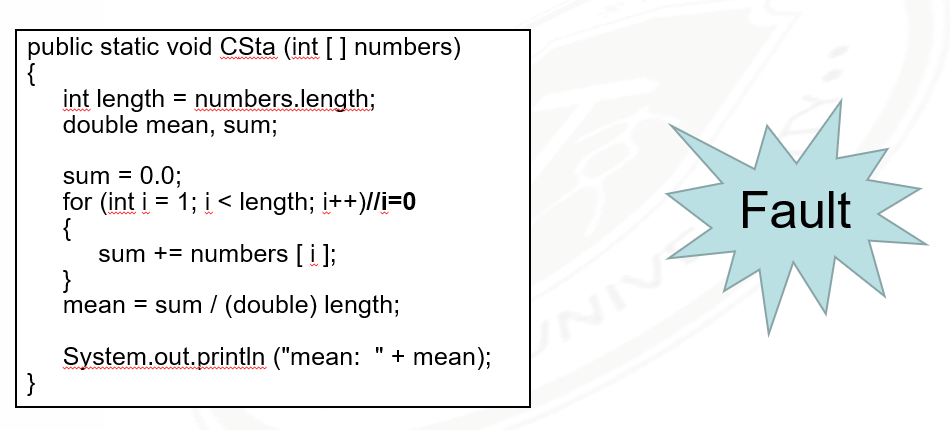

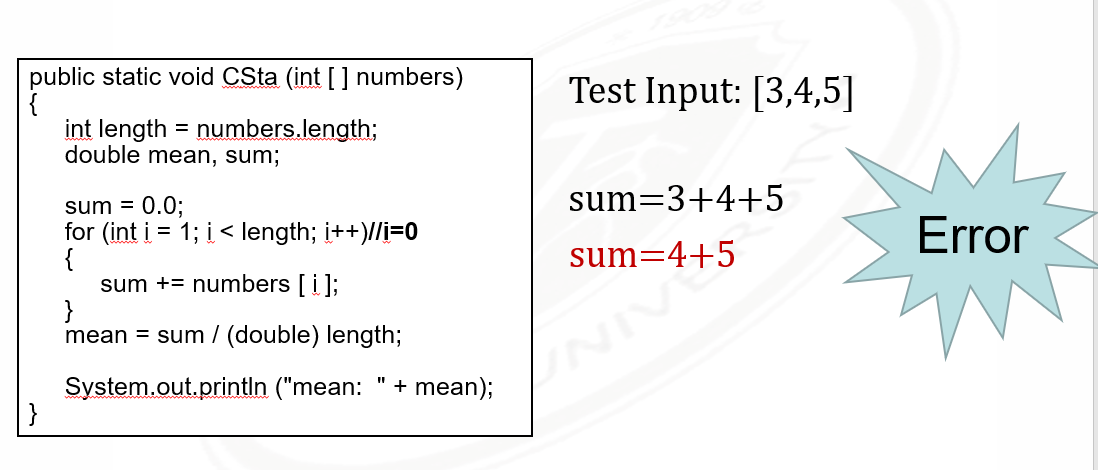

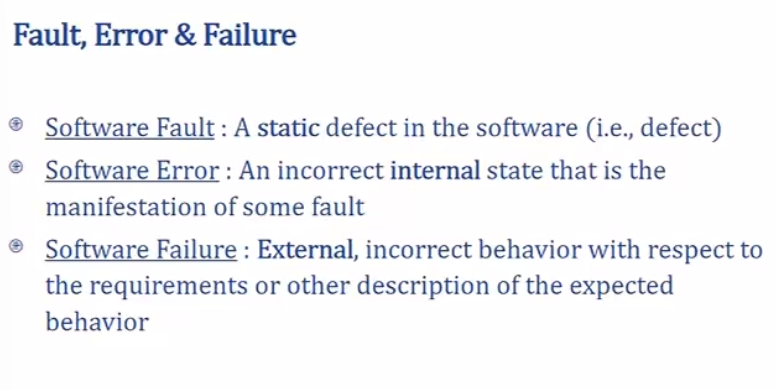

Fault, Error & Failure

2. Principle of Testing

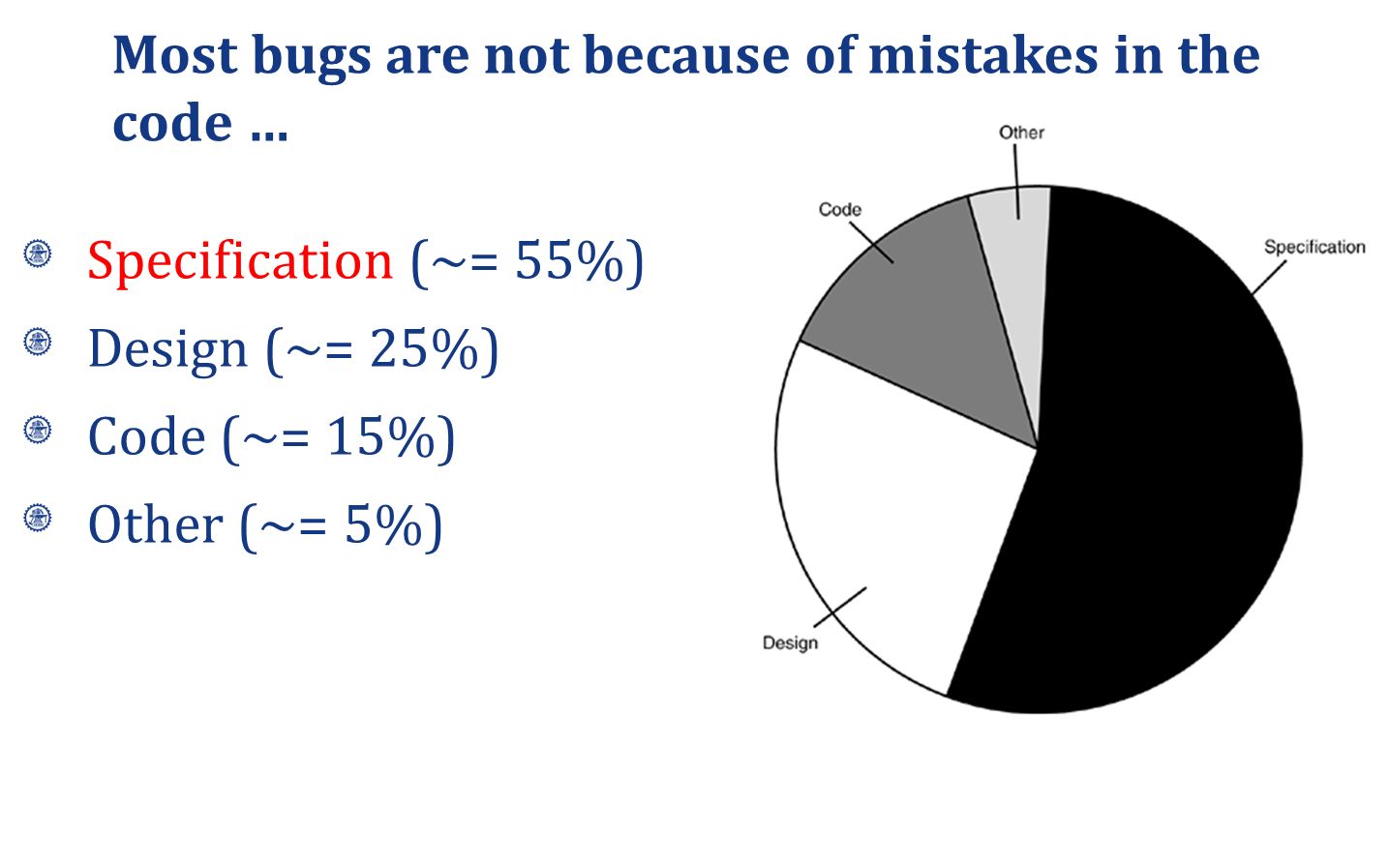

Source of Problems:

• Requirements Definition: Erroneous, incomplete, inconsistent requirements.
• Design: Fundamental design flaws in the software.
• Implementation: Mistakes in chip fabrication, wiring, programming faults, malicious code.
• Support System: Poor programming languages, faulty compilers and debuggers ,misleading development tools.
• Inadequate Testing of Software: Incomplete testing, poor verification, mistakes in debugging.
• Evolution: Sloppy redevelopment or maintenance, introduction of new flaws in attempts to fix old flaws, incremental escalation to inordinate complexity.
• Communications: Loss or corruption of communication media, non delivery of data.
• Space Applications: Lost lives, launch delays.
• Defense and Warfare: Misidentification of friend or foe.

测试流程

Goal of a software tester：

• ... to find bugs
• ... as early in the software development processes as possible
• ... and make sure they get fixed

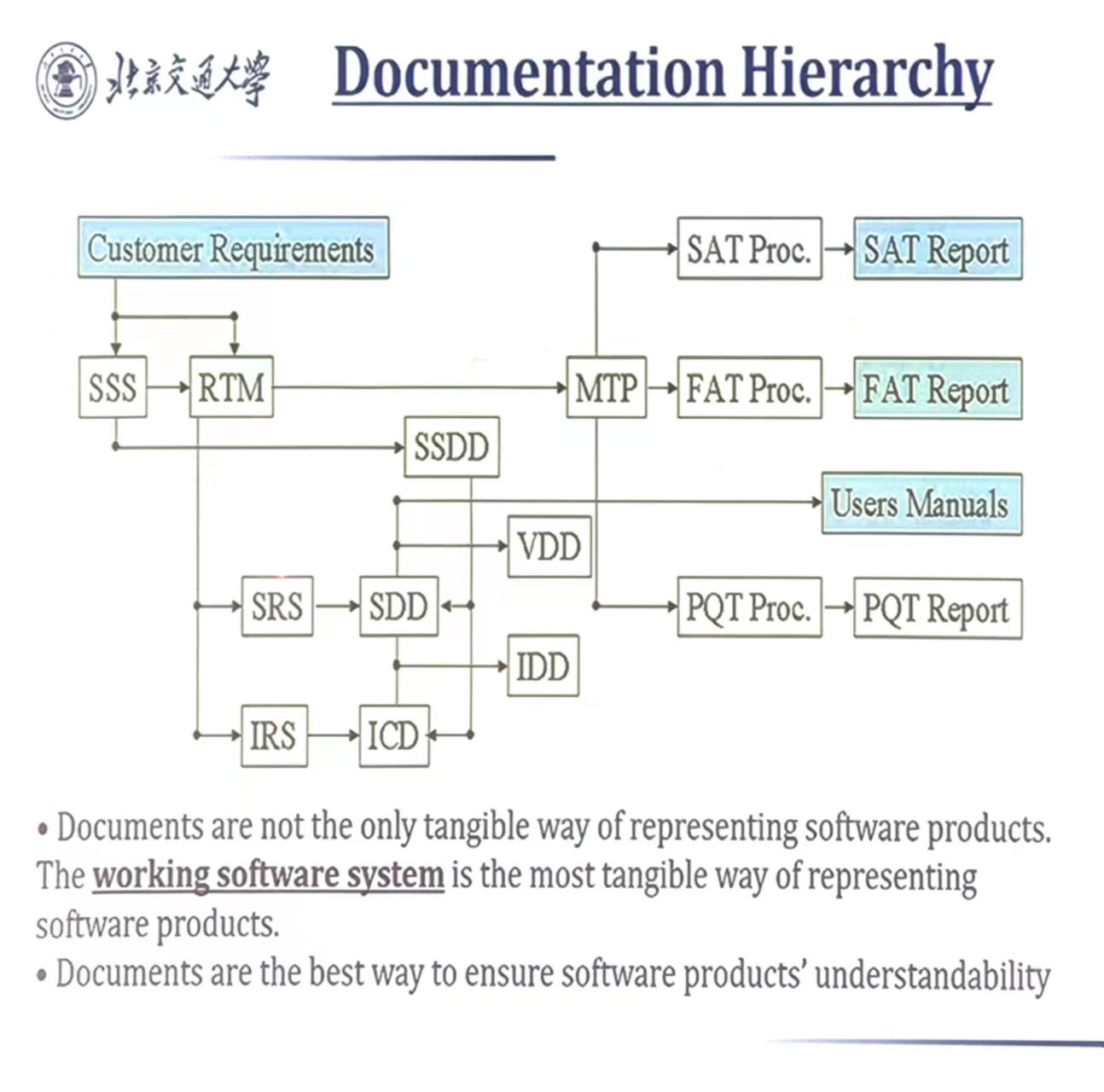

BRD - Business requirement document MRD - Market requirement document PRD - Program requirement document

• Customer requirements The software development team must determine what the customer wants.

• Specification

  • The specification takes the data from the customer requirements and other sources and defines:

    • The features of the software (functional requirements).
    • The constraints on these features (non-functional requirements).

  • Specifications can be:

    • formal, rigid
    • informal, on a cocktail napkin or a whiteboard

Testing - 找 Debugging - 修 Verification - 文档 Validation - 是不是用户想要的

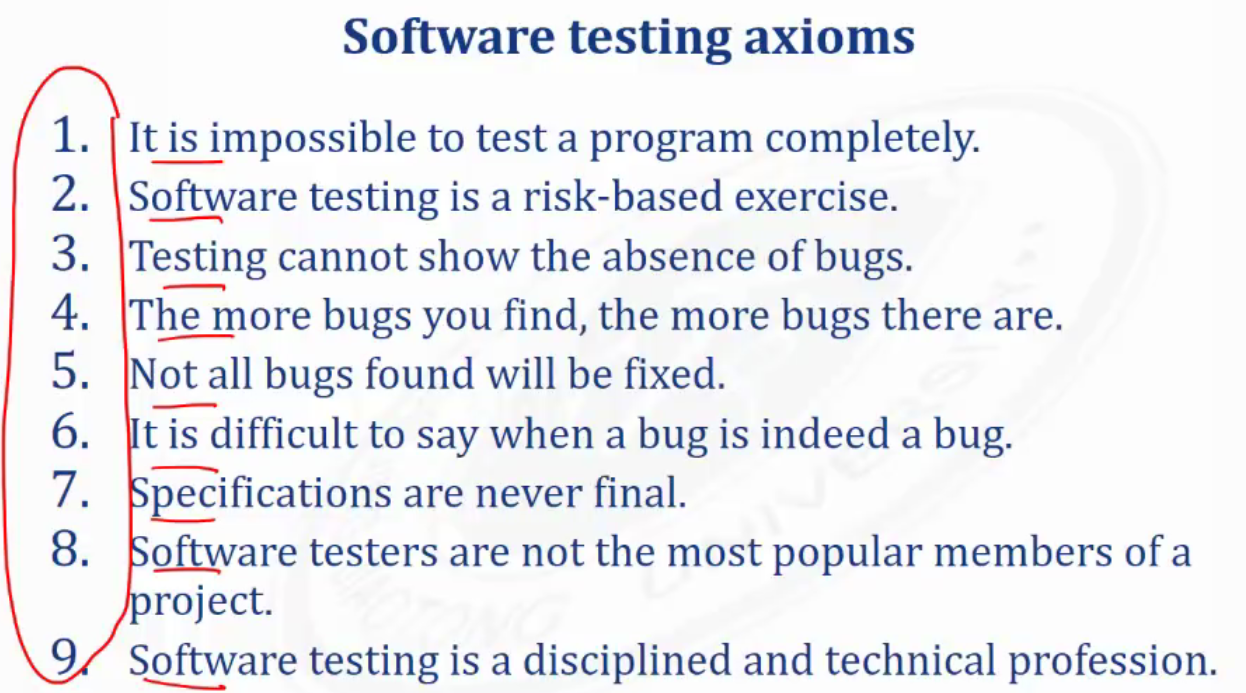

axiom公理

3. White Box

Examine the Design Document & Code static

Control Flow

控制流:

• Statement testing
• Branch testing
• Path testing

数据流:

• Definition-use path testing
• All uses testing

控制流

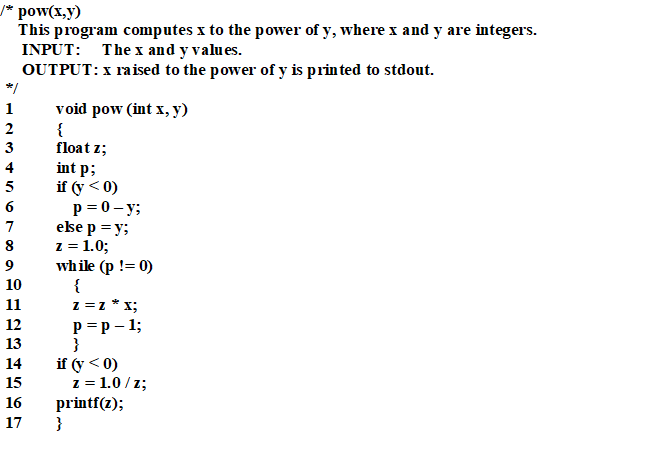

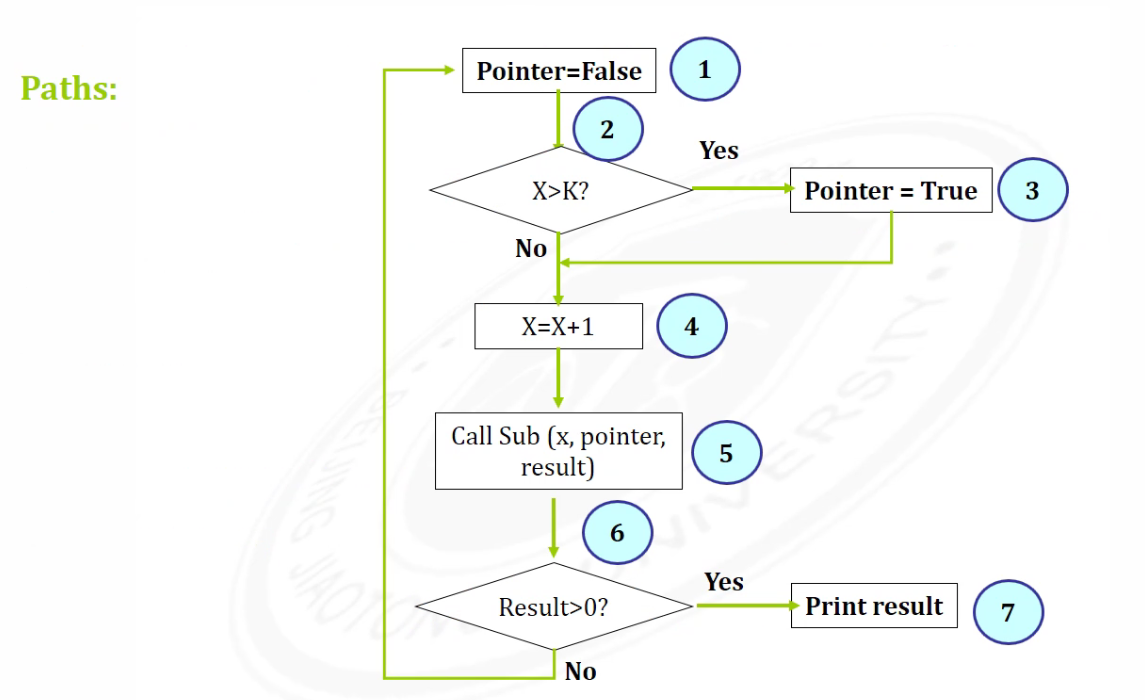

Example

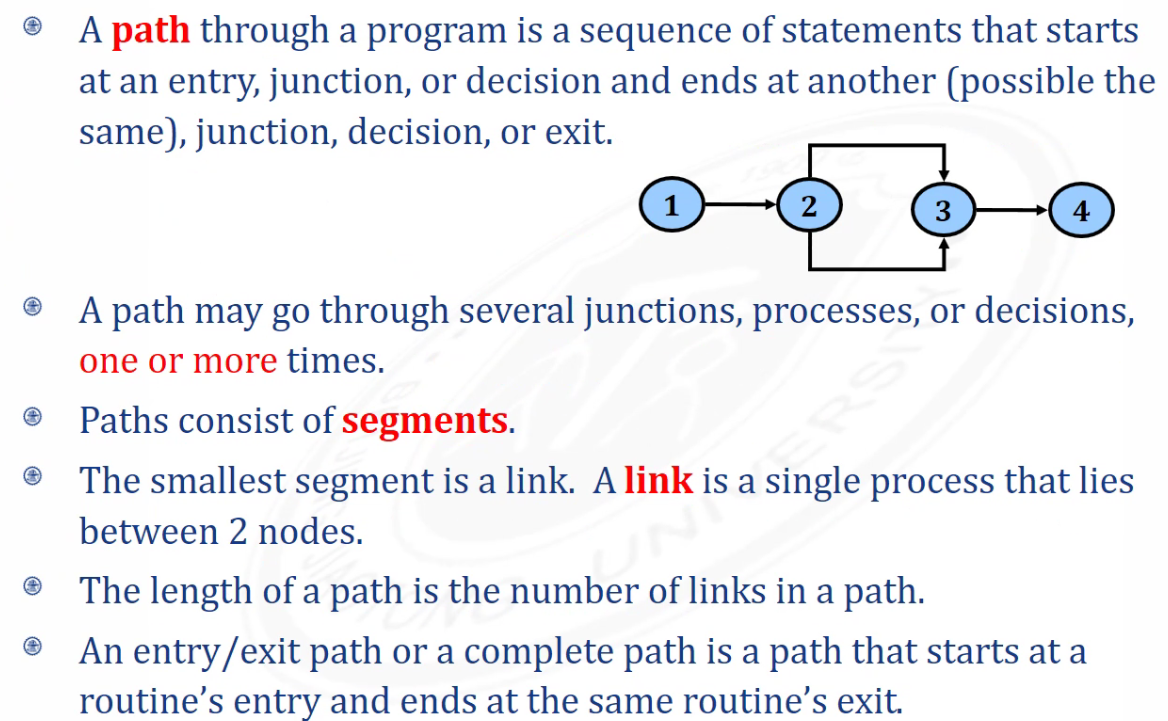

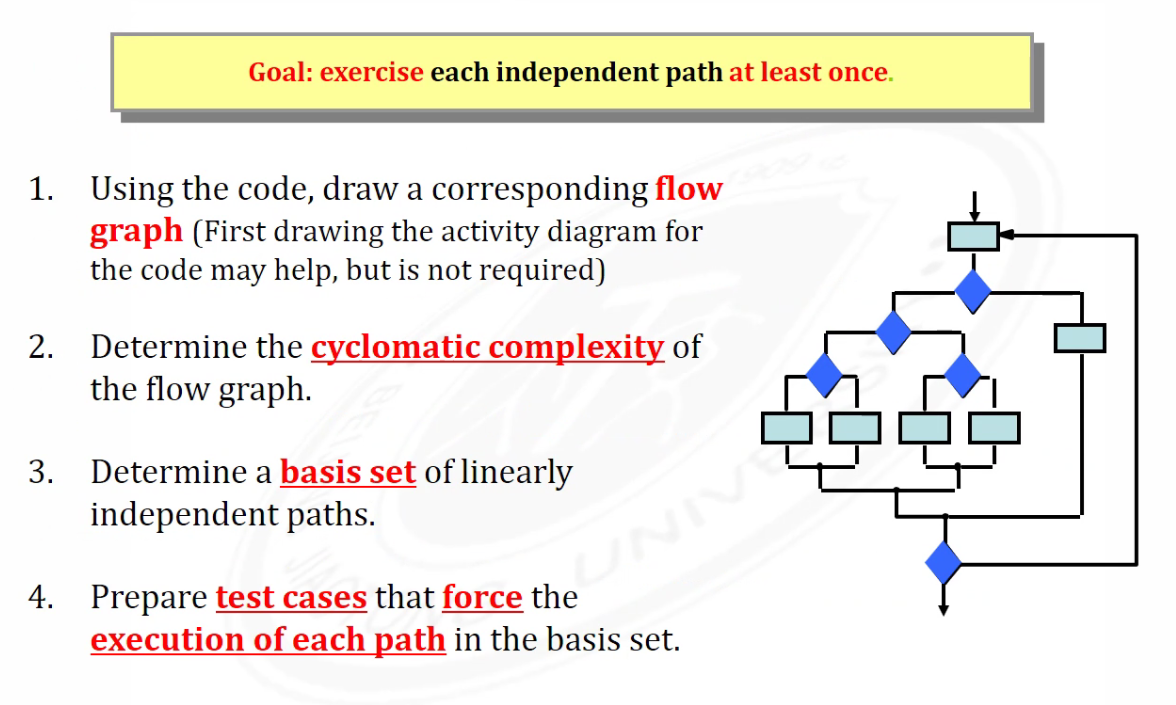

Basic Path Testing

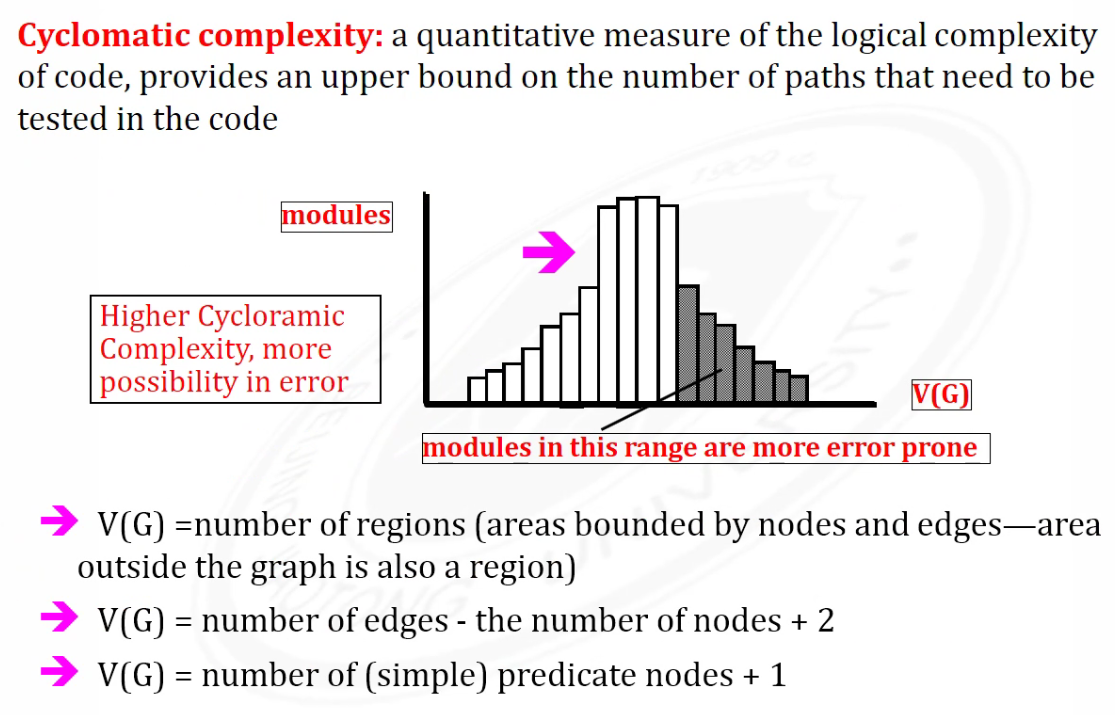

cyclomatic complexity 圈复杂度->图越复杂->程序越复杂

• Decision
• Junction
• End

圈复杂度计算

• 区域
• 边-节点+2

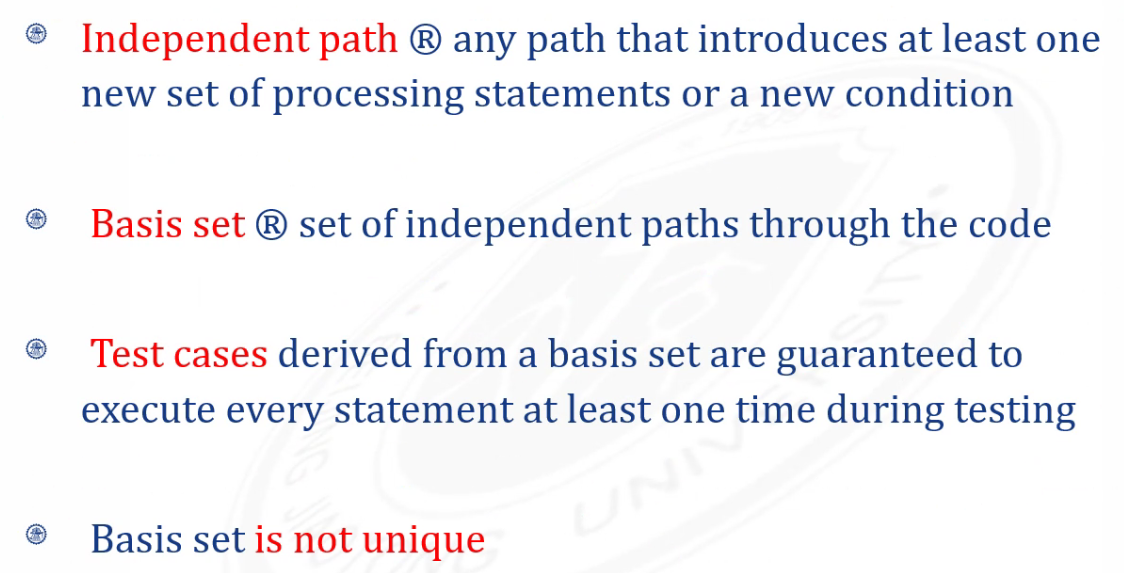

V(G)= the number of Independent path

Not complete Testing:

• Spec
• Testcases
• Not all bugs can be fixed

Condition testing

Logical conditions

• Simple condition: (a rel-op b) where rel-op={<, ≤, =, ≠, ≥, >} (may be negated with NOT), e.g., a≤b; NOT(a≤b)
• Compound condition: two or more simple conditions connected with AND, OR, e.g., (a>b) AND (c<d)
• Relational expression: (E1 rel-op E2) where E1 and E2 are arithmetic expressions, e.g., ((a*b+c)>(a+b+c))

Branch testing

for a compound condition C, test true and false branches of C and every simple condition of C

e.g., for C = (a>b) AND (c<d) test:

Domain testing

for an expression E1 rel-op E2, test for E1 ≧ ≦ = < > ≠ E2

• guarantees detection of rel-op error if E1 and E2 are correct
• to detect errors in E1 / E2, the difference between E1 and E2 for the tests E1 < or > than E2 should be as small as possible
• for an expression with n variables, 2n tests are required

Coverage

• condition coverage
• preserves desicion coverage: decision/condition coverage

path coverage 最大

• Path Testing Pu

  • 100% path coverage.
  • Execute all possible control flow paths through the program.

• Statement Testing P1

  • 100% statement coverage.
  • Execute all statements in a program at least once under some test.

• Branch Testing P2

  • 100% branch coverage.
  • Execute enough tests to assure that every branch alternative has been exercised at least once under some test.

P1 ≤ P2 ≤ Pu

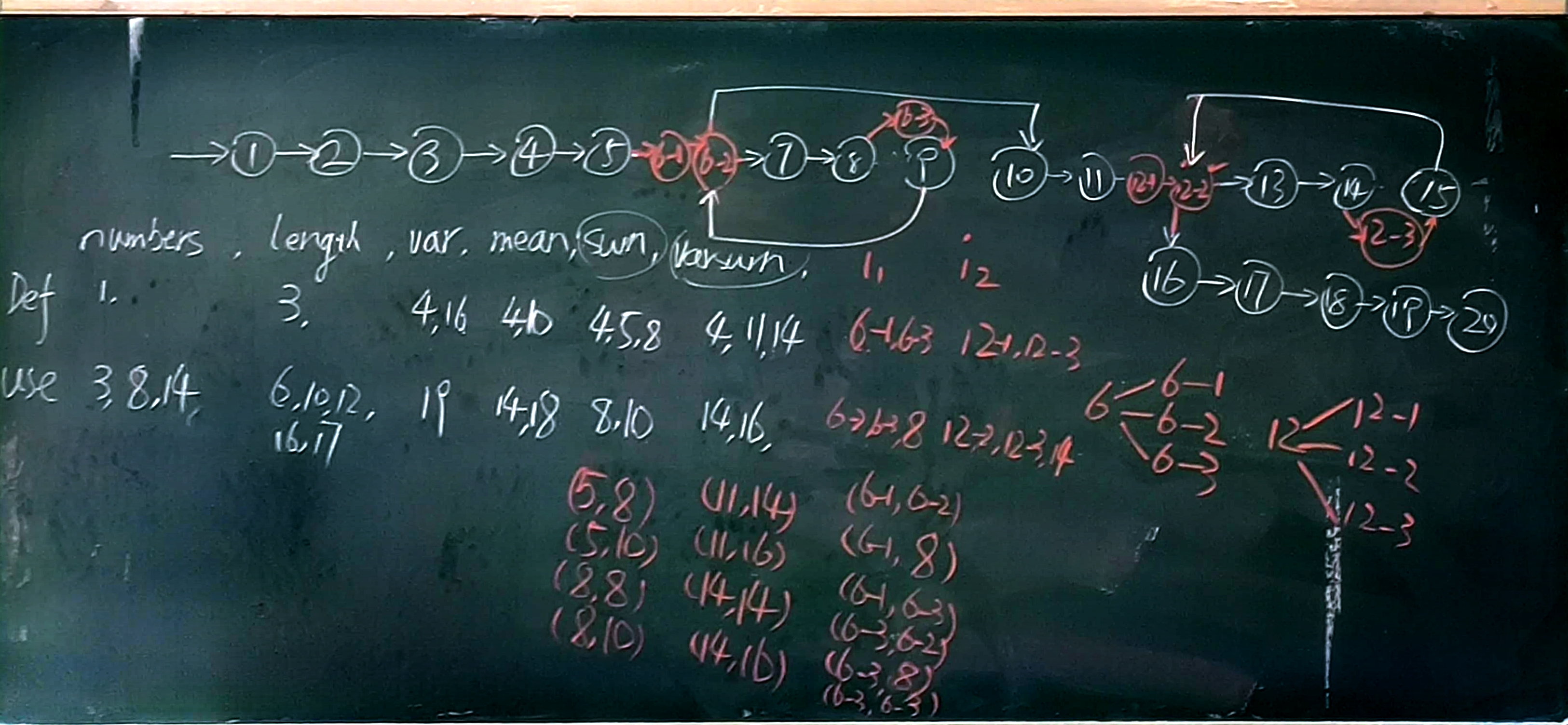

数据流(考试无关)

Definition

A location where a value for a variable is stored into memory

def and use

数据流必须全拆，控制流有些可不拆（并行判断要拆）

4. Black Box

Test case:

1. Reduce Testcase
2. Maintain Test Performance
3. Test Coverage

4.1 Random Testing

Adaptive Random Testing 选点有规则且与前几个用例越来越远

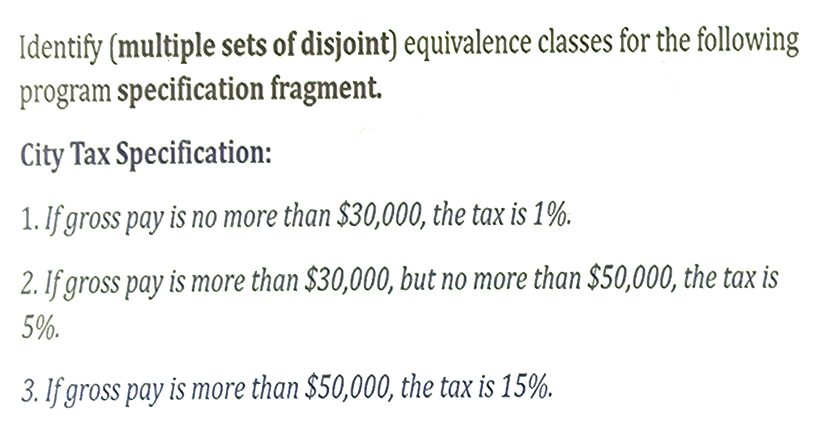

4.2 Equivalence Partitioning

Identify input equivalence classes注意边界值:

• Based on conditions on inputs/outputs in specification/description: Both valid and invalid input equivalence classes
• Based on heuristics and experience

4.3 Boundary Value Analysis

Example strategy as extension of equivalence partitioning:

• choose one (n) arbitrary value(s) in each eq. class 每个class选个任意值
• choose values exactly on lower /upper boundaries of eq. class 准确值
• choose values immediately below /above each boundary ( if applicable ) 临界值 min和max也都要测 （min - 1可放在class中）

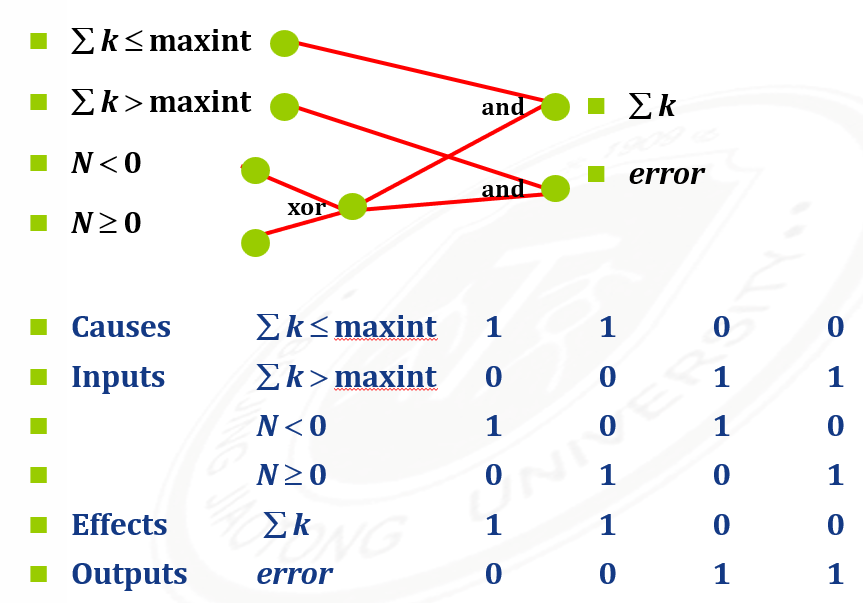

4.4 Cause Effect Analysis

因果分析

RT ART - Reduce test case EP - Reduce test case & maintain test performance BVA - Maintain test performance & Coverage Cause Effect - Reduce Test case

5. Integration Test

driver - 用于集成测试

Important traits of a good UI

• Follows standards and guidelines
• Intuitive 直观
• Consistent 一致性
• Flexible
• Comfortable
• Correct
• Useful

Accessibility Testing for disabled

6. Mutation Testing

变异测试

How good are my tests

Coverage = 有多少代码能够测到的 Key idea = 从早期和常见的错误中学习，防止它们再次发生，（如拼写错误）

Mutation testing

Mutation testing terms

• Mutant
• Mutation operator
• Mutant killed
• Mutant score = killed mutants / (N - number of equivalent mutants)

Finite automata

7. Mid-Review

Bug

Requirement——black box Design Code——white box

7.1 测的部分分类

7.1.1 Input Domain Testing Techniques

• Random Testing
• ART
• EP
• BVA
• CE

7.1.2 Code-Base Testing Techniques

• Control-flow
• Data-flow

7.1.3 Fault-Based Testing Techniques

• Error Guesting
• Mutation

7.1.4 Model-Based Testing Techniques

• FSM
• Logic
• UML

7.2 测的区域分类

7.2.1 Unit Testing

White&Black box

Unit

• driver
• stub

7.2.2 Integration Testing

测interface

• API
• SDK

Approaches

• Big bang
• Incremental

Test Function

• Top-down
• Mixed
• Bottom-up

7.2.3 System Testing

Functional

Non-Functional

• Usability
• Performance
• Security
• Load

8. Maintain

考试相关
